Ultrasonic Level Meter Wide Measuring Distance for Both Liquid and Solid PLC System Monitoring

Ultrasonic Level Meter Wide Measuring Distance for Both Liquid and Solid PLC System Monitoring

Ultrasonic Level Meter

One, Product Introduction

Ultrasonic level (material place, liquid level)meter, is a non-contact, high reliability, cost-effective, easy to install and maintain level measurement instruments. It does not have to contact medium and it can meet most of the requirement of level measurement, the new generation ultrasonic level meter is developed through our company’s many years’ efforts and our company own the completely independent property rights of it.

Two, Debugging

Due to the different installation environment of instrument, so before ultrasonic level meter works we must know the basic situation of the required measure, such as measurement range, zero point, full scale and scene working condition. More specific please refer to the first page of this manual.

Other: Don’t modify these three projects: transducer select, parameter calibration and algorithm select by youself.

Three, Main Technical Specifications

Parameters

Integrated type

Separated type

Measurement range

5m、10m、15m、20m、30m、40m、50m、60m

5m、10m、15m、20m、30m、40m、50m、60m、70m、

Measurement accuracy

0.25%-0.5%

0.25%-0.5%

Resolution

3mm or 0.1%(take great)

3mm or 0.1%(take great)

Display

English LCD

English LCD

Analog output

4wires4~20mA/750Ω load

2wires4~20mA/250Ω load

4~20mA/750Ω load

Relay output

2groups AC 250V/ 8A or DC 30V/ 5A state programmable(optional)

Single channel for two groups, double channels for four groups AC 250V/ 8A or DC 30V/ 5A state programmable( optional )

Power supply

Standard configuration 24VDC

optional 220V AC+15% 50Hz

Standard configuration 220V AC+15% 50Hz

optional 24VDC 120mA

custom 12VDC or power supply

Environment temperature

Display instrument-20~+60℃,

transducer-20~+80℃

Display instrument -20~+60℃,

transducer-20~+80℃

Communication

Optional 485, 232 communication

Optional 485, 232 communication

Protection grade

Display instrument IP65, transducer IP68

Display instrument IP65, transducer IP68

cable

no

Up to 100 m, Standard configuration 10m

Transducer installation

According to the range and transducer select

According to the range and transducer select

Note: This series of ultrasonic transducer can also customize according to the customer demands: special specifications of transducer such as high voltage, high temperature resistant, minor-caliber, small blind area and so on.

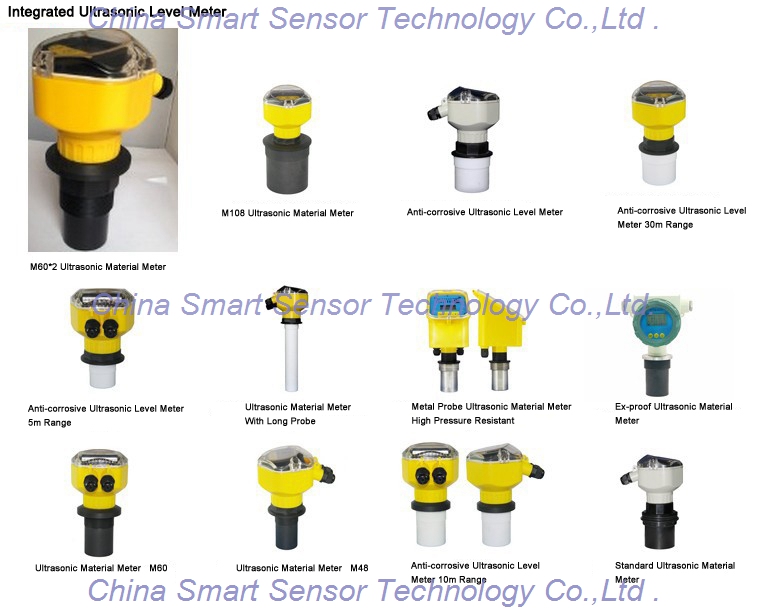

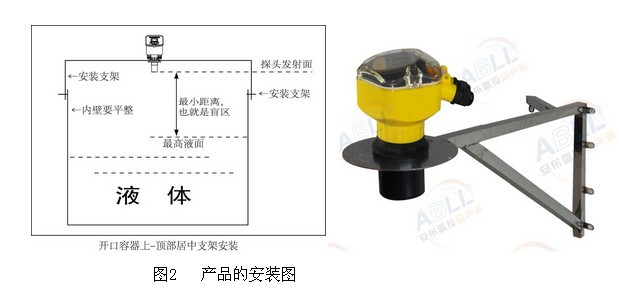

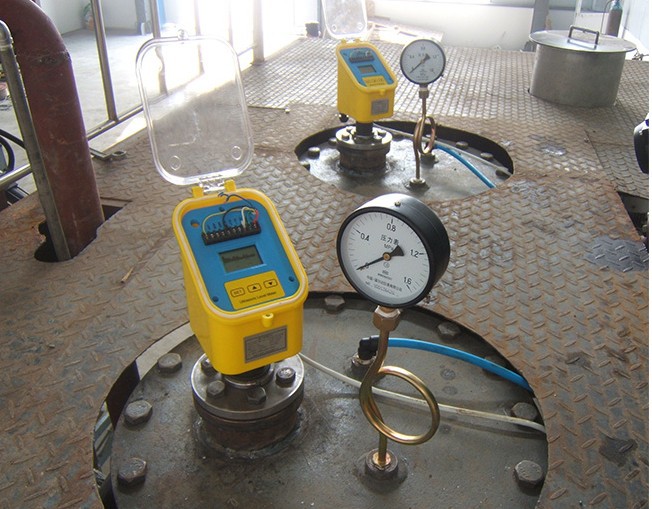

Installation Pictures

Ordering Guide

1. Measuring media?
2. Media’s temperature and pressure?
3. Is your measuring media corrosive?
4. Need ex-proof , anti-corrosive?
5. Measurement range?
6. Working environment/condition?
7. Working voltage: 24VDC is standard ; 220VAC is optional ;12VDC/9VDC can be customized
8.Signal output: 4~20mA or RS485 or RS232?
9: Connection method?
